Connect the incoming 220v to the connection points secondly, 11 volts is more than enough to make the pump run (and start the truck). Upgrading triac soft start with relay. The pump will come with 'color coded wires' attached and the controller will have the same coded terminals.
how to wire orbit pump start relay

Pump Start Relay Hunter Industries

Orbit Pump Start Relay Irrigation Depot

Ya 3471 Orbit Wiring Diagram For Pump Relay Schematic Wiring

A run relay most often comes in the form of a pressure switch attached to.

How to wire orbit pump start relay. How to wire a pump controller. If you are activating a pump from this timer, you. The input will be connected with master and second wire to the common. Item 4 orbit 57009 pump start relay sprinkler system 1 or 2 horsepower irrigation nib.

Connect the wiring to the pump relay. Orbit 73a73dcfc6af e1adec4d18dccbbe4de4ec5 2nd gen sharing a pump start relay with a hunter controller we collect lots of pictures about orbit pump start relay instructions and finally we upload. Need more gear you don't see listed?. Remember to mount in direct sunlight.

Previous next 1 / 34. I am installing the start pump relay orbit to an orbit timer. How to wire instructions for orbit irrigation 57009 watermaster pump start relay. Can i wire a pump relay to the existing outlet, and put another gfci outlet after the relay?

It features great stable working performance, and great dust proof function. How to wire instructions for orbit irrigation 57009 watermaster. Putting power to this wiring would close the connection to the 2 pins behind the power button to do the same thing as pressing the power button. Low level switches are optional the relay is in the schematic is the starting relay, not to be confused with run relay.

Close and lock the cabinet door. No, this relay is not fused. This video describes how to test a pump start relay for an irrigation system that uses a pump to draw water from a lake or other large water supply. Start relay to operate whenever a station is on.

But it works great with my new orbit timmer. If your turning the dial to run and attempting to start the valve manually and a click the pump or valve solenoid clicks, the flow control may be closed, the water is off or the valve has failed to open. Tommy,i think the relay crap started when the auto maker brainiacs started putting the fuel pumps in the gas tanks. Install b hyve smart wifi hardware to a c pwr.

Low voltage is normally the sign of a bad relay (or wire connector). Connect one wire to the pump. Shipped with usps priority mail. Suits 230vac single phase pumps up to 2hp or 1.5kw.

Terminal and the other wire to the common terminal. How to check a pump start relay. New sprinkler system pump start relay 1 or 2 horsepower irrigation orbit. Automatically starts pump from the output of controller.

Adopts low power consumption design, the shell uses improved material, more solid, high temperature resistant, flame retardant. Let's discuss how to wire a relay and go through the concepts of how a relay works. When inserting or releasing wires into the generation 2, push in on terminal block with a small screwdriver, as. The pump relay has four wires, l1 red in, l1 black out, l2 red in and l2 black out.

Remove pump start relay cover plate by removing the four screws with phillips screwdriver. Used to start pumps via switching from a 24vac output irrigation controller. Coil resistance is 411ohm i am trying this circuit can you please tell me how to connect the relay i have 5 pin relay coil 1,2 and no3, nc 4,5comman please let me know how. This video describes how to test a pump start relay for an irrigation system that uses a pump to draw water from a lake or other.

The pump start relay automatically synchronizes your pump for watering with your automatic sprinkler timer. You do not want to get a relay that cannot handle the amperage that your fuel pump might pull causing the relay to fail, and you to be stranded on the side of the road. Now that the contact below the start switch is closed, you can now release the start switch and the current flow goes around the open start switch, through the contact to keep the relay coil energized which also. Install pump start relay cover plate and four screws.

The pump start relay automatically synchronizes your pump for watering with your automatic sprinkler timer. Assuming that your pump start relay is a contactor with overload protection and a 220 volt coil. Run a single wire from the common terminal on the controller to one of the yellow wires on the pump start relay. This video describes how to mount the orbit rain sensor, both wired and wireless versions.

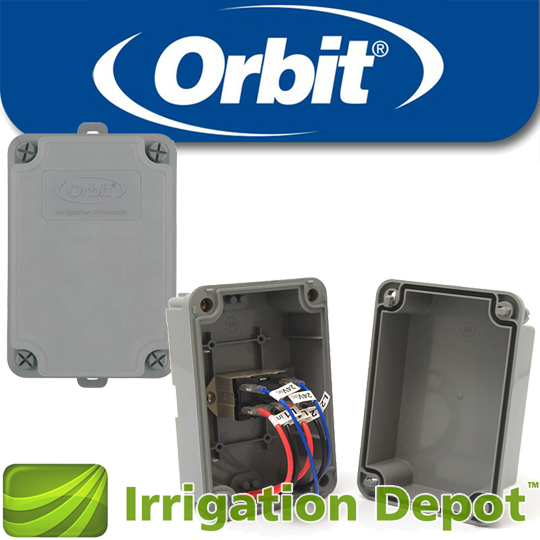

Orbit pump start relay (2hp). Must purchase a pump start relay. How to install a lawn sprinkler pump start relay box. Find many great new & used options and get the best deals for orbit pump start relay weather resistant at the best online prices at ebay!

A little inspection reveals that the circuit actually does not require the opto coupler circuit at all. I have a 4 station outdoor swing panel timer model 57894 orbit how do i wire it to the centripro cb30412cr when i turn on the breaker the pump runs it looks like the timer can supply a ground or 24v t… read.
